Type 05 Blind flanges PN6 / PN16

Name: Type 05
SKU: 5735
Availability: InStock

Nominal width

Type

Clear

SKU: N/A Category: Flanges

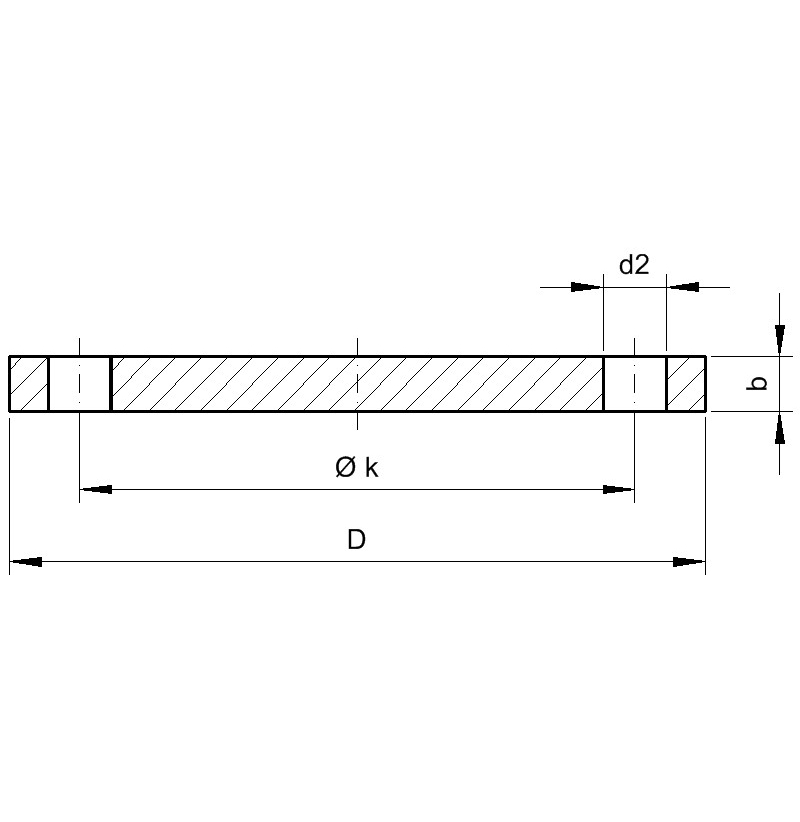

Size (in inch)	D (in mm) PN 6	Øk (in mm) PN6	D (in mm) PN 16
10	75	50	90
15	80	55	95
20	90	65	105
25	100	75	115
32	120	90	140
40	130	100	150
50	140	110	165
65	160	130	185
80	190	150	200
100	210	170
125	240	200
150	265	225
200	320	280
250	375	335
300	440	395
